Acoustic and washable air inlet canopy
Improved acoustic insulation and cleaning compared to standard products thanks to the use of Helmholtz resonators to treat the acoustics, instead of melamine foam
Customer : Sil vous plait, Sil&Add's product brand
Project partners : CETIAT (standardised testing), NGI (industrialisation), Cabinet Chaillot (industrial protection)

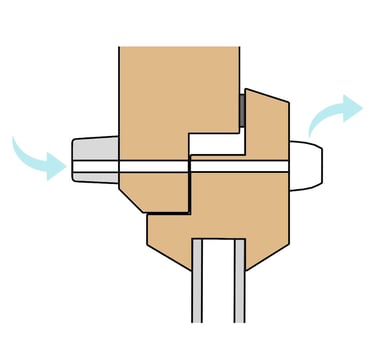

Air inlets provide fresh air for natural ventilation or single-flow ventilation systems.
Outside noise (from roads, city centers, etc.) penetrates homes through the entire envelope. When air inlets don't provide sufficient insulation, they become the weak point in insulation.
To improve the insulation of air inlets, acoustic foams are often used. These cannot be cleaned of deep pollution deposits.
The aim of this project is to develop and industrialize a new canopy (mounted on the outside of the window) that improves the acoustic insulation of the air inlet, while being easy to clean.
Innovation roadmap
To set a clear framework for development, we defined precise specifications: dimensions, materials, maximum cost, the need for a 100% cleanable acoustic solution.
These specifications are the result of a study of similar existing products on the market, standards and DTUs, and discussions with acoustic engineers and architects.
The product must therefore soundproof the air inlet using cleanable Helmhotz resonators that do not reduce the air flow.
Pre-study
To identify the acoustic phenomena that govern the insulation performance of air inlets, we first produced a simplified finite element numerical model (normal incidence, 2D model), which we compared with an analytical model.
This pre-study demonstrated the product's potential and why the number and position of resonators in the product are so important.
Modeling
Then we used Comsol Multiphysics to digitally model the complete acoustic problem: diffuse field, 3D model, interior and exterior accessories, porous materials and impermeable films, transmission coefficient per one-third octave band, and the standard's unique performance index. This modelling confirmed the major trends observed during the pre-study.
Conception and optimisation
The product was then convceived and optimised for :
its mechanical aspects so that it can be produced as a prototype using 3D printing;
its acoustic aspects, by optimising the geometric parameters and materials that have an impact on its insulation performance, using the complete digital model.
Prototyping and laboratory testing
Prototypes of the product were produced using 3D printing.
They were characterised in a test centre, in accordance with standard NF EN 13141-1:2019, by CETIAT, France. This laboratory competed with other laboratories and was selected for its availability, rates and COFRAC accreditation.
Industrialisation

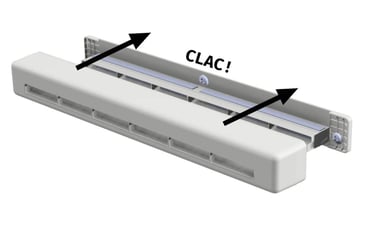

Together with our partner, NGI, we modified the design of the product so that it could then be manufactured by plastic injection.
Plastic injection tools are made in China, then repatriated to France for production.
Small elements of the acoustic resonators are produced by 3D printing to limit investment in tooling. They can then be injected.
Industrial property
Working with Cabinet Chaillot, we carried out a prior art study early on in the project and filed a patent application with the INPI to protect the product.










Pre-study modelling results
Full modelling and test results
3D printing prototypes for testing
Prototype test report

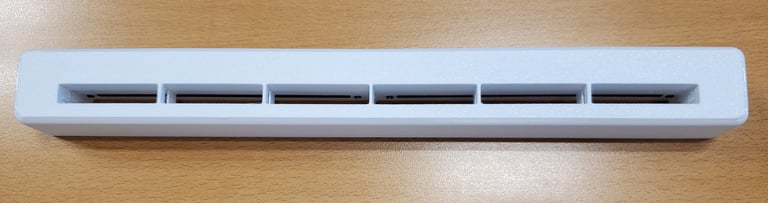

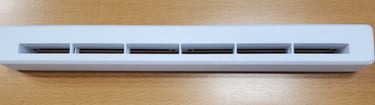

Injected plastic product
Patent application


Product conception


Full modelling
Dimensions
410 x 45 x 45 mm
Close to similar products on the market
Standard mortise mounting - 2 x 160 x 12 mm
Matériaux
PEHD and PETG
Materials compatible with outdoor installation (temperatures, UVs, shocks)
No melamine-type acoustic foam
Cost price
Low weight thanks to plastic injection moulding of the product body
Can be reduced if a 4-cavity mould is made
Cleaning
100% washable product, including acoustic components
Acoustic insulation

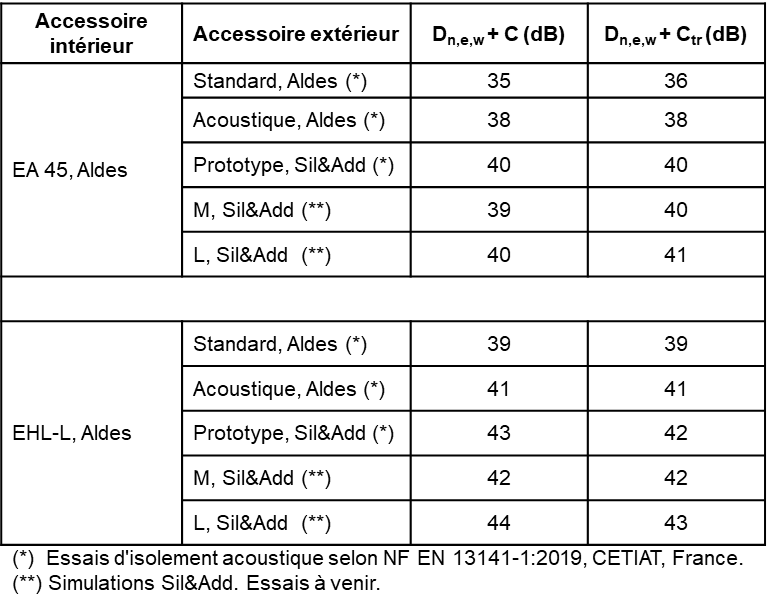

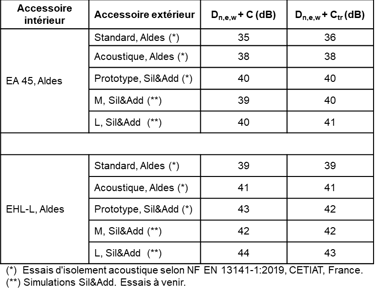

Increase in Dn,e,w + Ctr of +2 to +4 dB compared with a canopy without acoustic function.
Pressure losses
Very low reduction in air inlet flow (<5%).


Unique sound insulation values


Injected plastic product
The Pays de la Loire Region, via Solutions & Co and Bpifrance, financed the experimental tests on prototypes through the PL2I ‘natural person’ grant.
Since July 2024, the development of this product has been funded by the French government as part of France 2030. French Tech ‘Emergence’ grant No. DOS0242368/00.
Aid and financing
